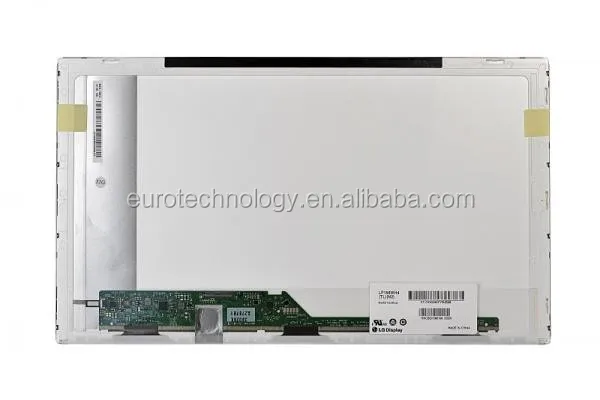

For Dell 3521 3531 3537 3540 5521 5537 M531R P28F LP156WHB-TLA1 40pins 1366*768

FOB Reference Price:Get Latest Price
1 Piece/Pieces (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Japan
Brand Name:
EU
Model Number:
LP156WHB-TLA1
Type:
TFT
Panel Size:
15.6 inch
Resolution:
1366(RGB)*768,WXGA
Display Mode:
TN, Normally White, Transmissive
Viewing Angle:
40/40/15/30 (Min.)(CR≥10) (L/R/U/D)
Lamp Type:
WLED
Signal interface:
40/40/15/30 (Min.)(CR≥10) (L/R/U/D)
Brightness:
200 cd/m2 (Typ.)
Contrast Ratio:
500:1 (Typ.)
Surface:
Glare (Haze 0%), Hard coating (3H)
Application:
For Dell 3521 3531 3537 3540 5521 5537 M531R P28F
Supply Ability
Supply Ability:
1000000 Piece/Pieces per Month SAMPLE IS WELCOME
Packaging & Delivery
Packaging Details
original factory packing
Port
HK
Lead Time :
1 working day

For Dell 3521 3531 3537 3540 5521 5537 M531R P28F LP156WHB-TLA1 40pins 1366*768



LP156WHB-TLA1 LCD PANEL SPECIFICATION

Panel Brand :LG Display
Panel Model :LP156WHB-TLA1
Panel Type :a-Si TFT-LCD , Panel
Panel Size :15.6 inch
        Resolution :1366(RGB)×768 , WXGA
Display Mode :TN, Normally White, Transmissive
Active Area :344.232×193.536 mm
Outline :359.5×223.5×3.8 mm
Shape Style :Flat (PCBA Flat, Depth 3.4~4.0mm)
Surface :Glare (Haze 0%), Hard coating (3H)
         Brightness :200 cd/m² (Typ.)
Contrast Ratio :500:1 (Typ.)
Display Colors :262K   (6-bit) , CIE1931 45%
Response Time :16 (Typ.)(Tr+Td)
Viewing Angle :40/40/15/30 (Min.)(CR≥10) (L/R/U/D)
Frequency :60Hz
Lamp Type :WLED        Embedded (LED Driver)
Signal Interface :LVDS (1 ch, 6-bit) , 40 pins
Input Voltage :3.3V (Typ.)
